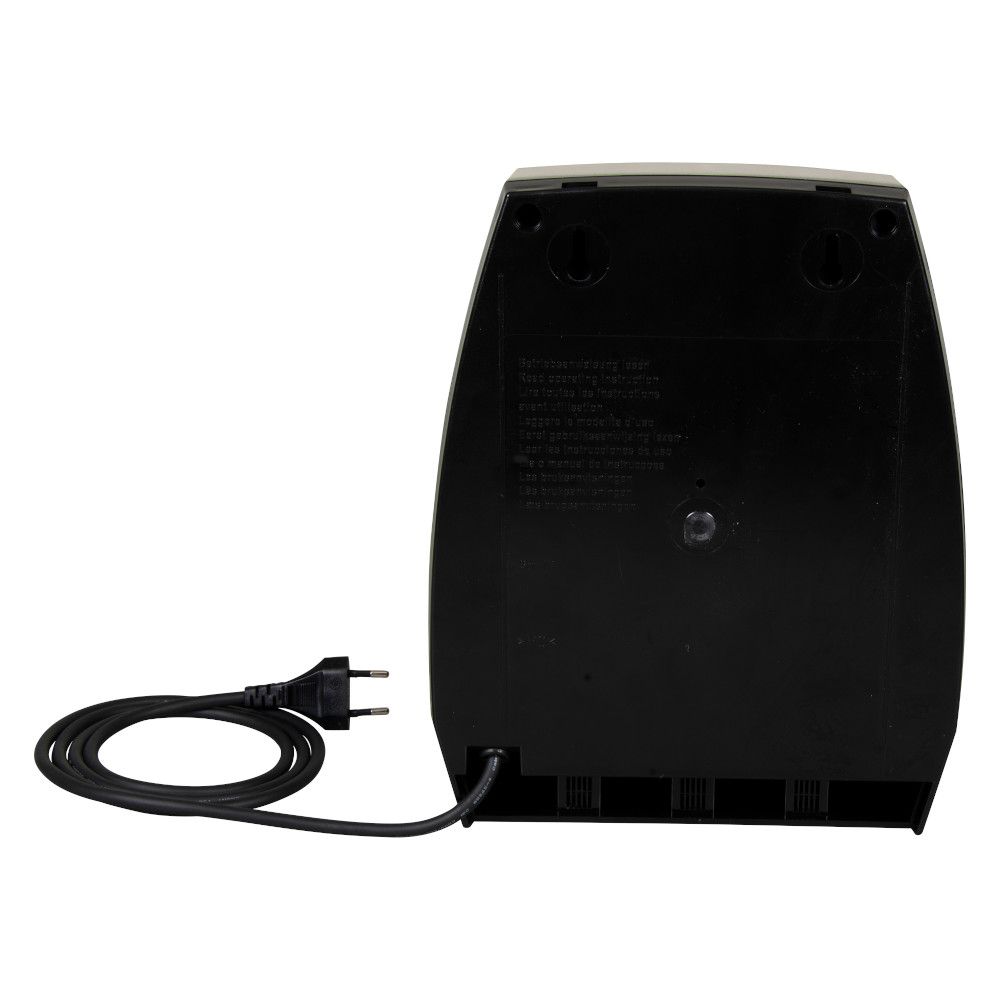

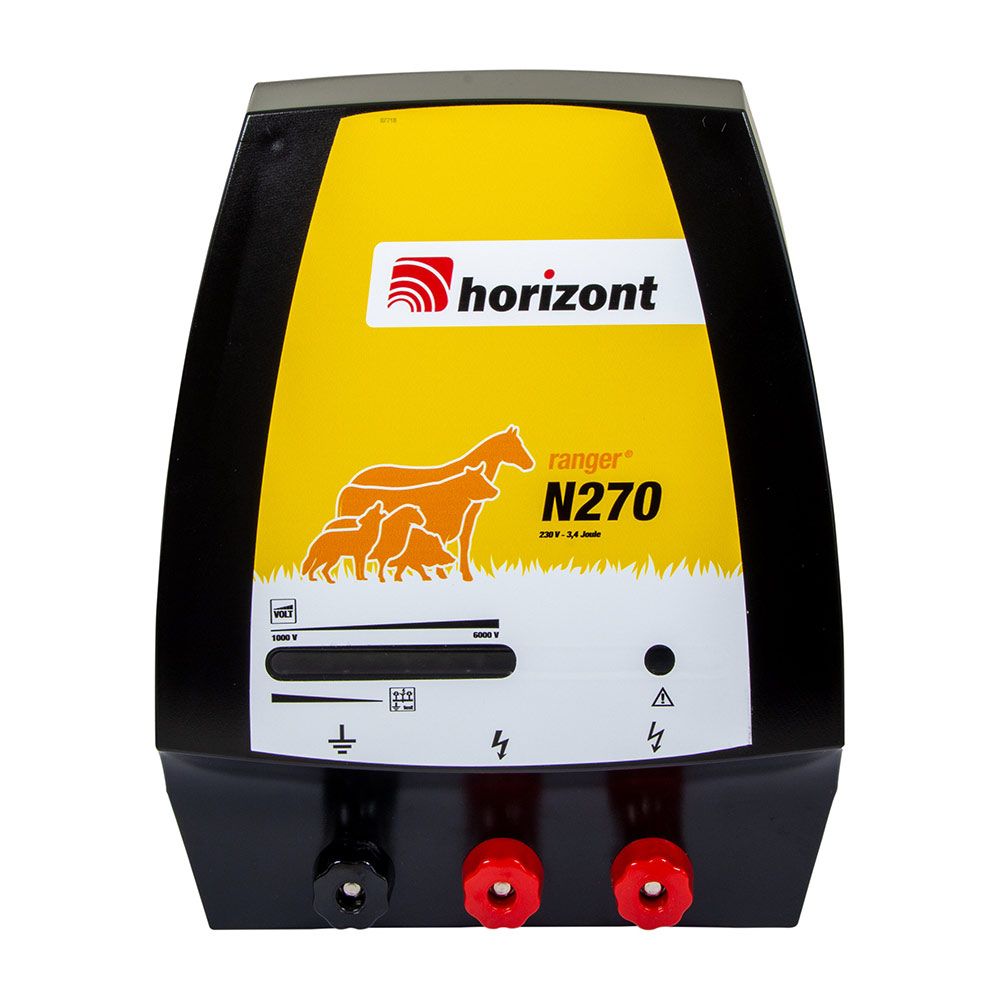

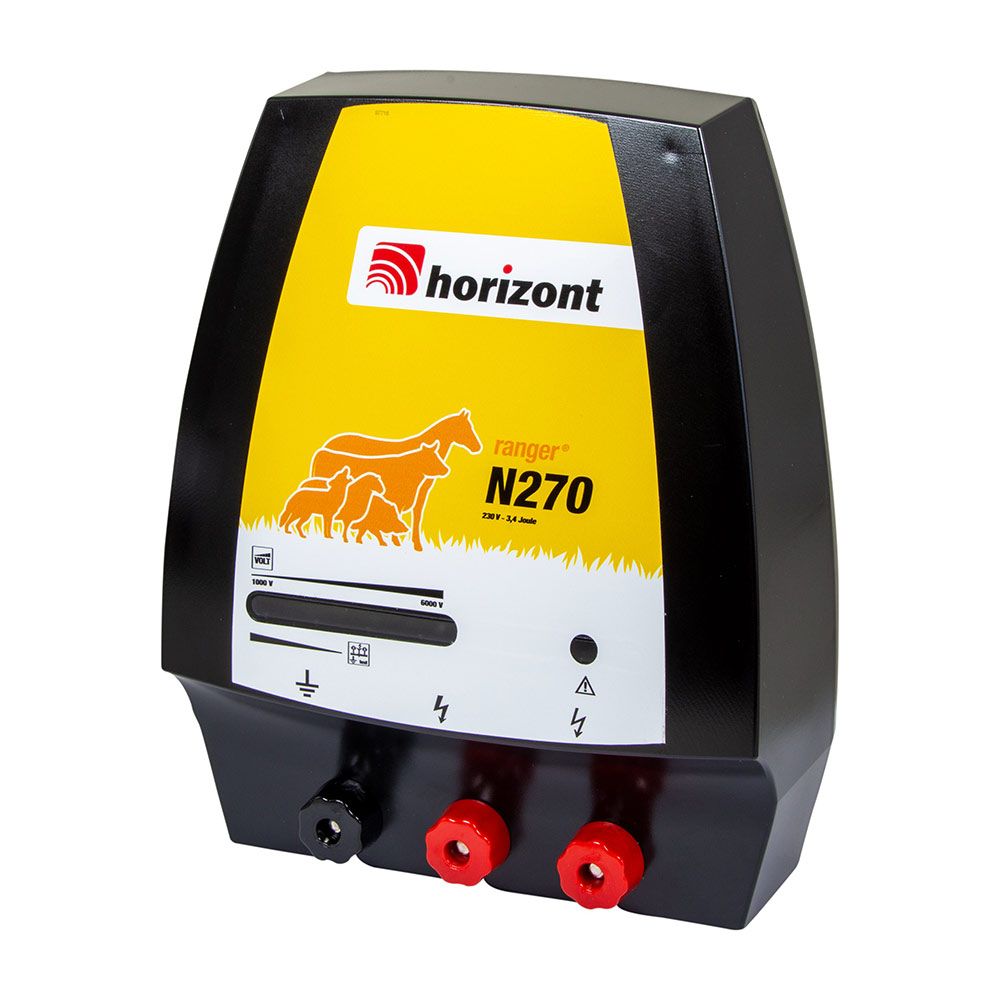

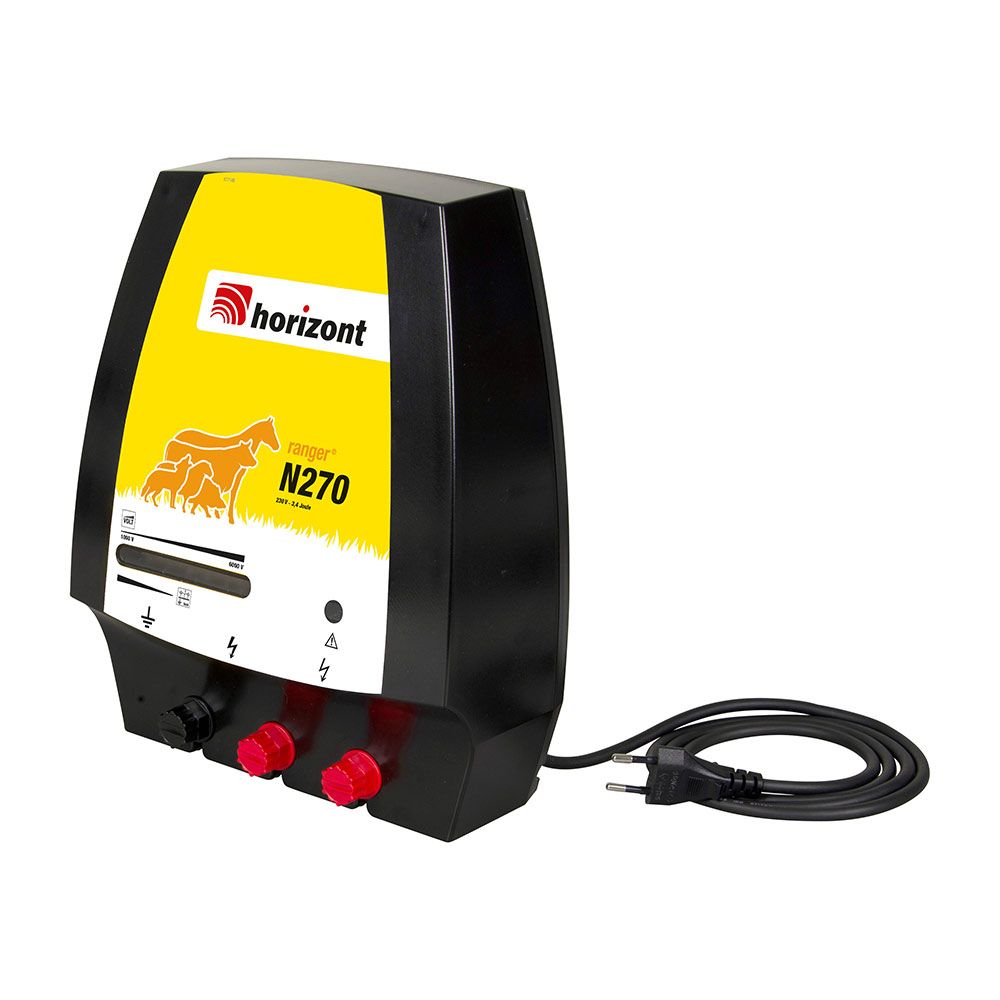

Energiser RANGER N270 HORIZONT
- Detailed description
The Ranger Energiser has 3 connections, in addition to the earth output, there are 2 outputs: a high power output and a low power output. The low power output (limited to approx. 0.5J) is especially used in the vicinity of houses.
Electrifiers applicable to any type of installation
The impulses will allow the energy to be both deterrent and non-traumatic over the entire fence.
Impulses work very well in conditions of high resistance (animal mane or hair or dry soil conditions).
- Mains device 3.5J input 2.4J output
- For fences up to 20km without vegetation and 2km with strong vegetation.
Technical data :
- Power : 230V
- Stored energy: 3.5J
- Delivered energy: 2.4 J
- Maximum fence voltage: 11800V
- Voltage under 500 Ohms : 5400V
- Maximum fence voltage (2 outputs): 9000V
- Consumption: 5W
- Maximum distance from the fence, CEE standard: 60km
- Distance without vegetation: 20km
- Distance with average vegetation: 5km
- Distance with strong vegetation :2km
- Number of electrifiable wires of the net: 12 x 50m
- Earth stakes: 2x1.5m
Warranty : 3 years
- Technical documentation
